MS3476W22-55P Straight Plug | MIL-DTL-26482 Series II Aviation Connector, 55-Pin

Circular MIL-DTL-26482 Series Ⅱ Connector .MS3476W22-55P.55 Female Pins.Straight Plug.Olive Drab Cadmium

Part Number:MS3476W22-55P

Product Description:

MIL-DTL-26482 Series Ⅱ is a type of crimp contact designed to meet the requirements of the military standard. It features a straight plug gender and is rated for a voltage of 500V. This product is an Narrow flange receptacle with an olive drab cadmium plated finish, meeting the MS3476 specification. MIL-DTL-26482 Series Ⅱ is designed to provide reliable electrical connections, and is ideal for use in harsh, demanding environments such as military and aerospace applications. It is a rugged, reliable, and cost-effective connector system that is built to last. MIL-DTL-26482 Series Ⅱ is the perfect choice for any application requiring superior performance and reliability.

Features:

• Product Name: MIL-DTL-26482 Series Ⅱ

• Contact Finish: Gold

• Gender: Straight Plug

• Connector Type: Circular

• Voltage Rating: 500V

• Straight Plug

• Olive drab cadmium plated

• Environmental sealing

• Vibration proof

Technical Parameters:

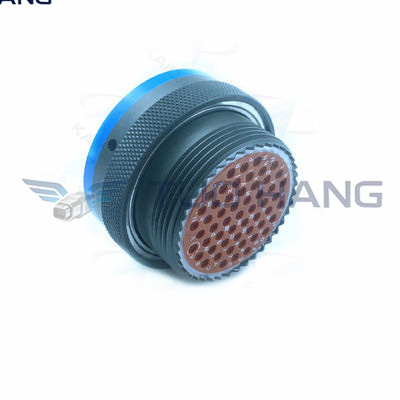

Product Pictures

Applications:

TUO HANG MS3476W22-55P MIL-DTL-26482 Series Ⅱ is a narrow flange receptacle with 55 contacts. It can be used in a variety of applications and scenarios with a voltage rating of 500V and a current rating of 7.5A. It meets the MIL-DTL-26482 series Ⅱ standard and is widely used in military, aerospace and other industries. It is designed to withstand temperatures of -55°C to +125°C, making it ideal for extreme conditions. The product is well made and highly reliable, and provides superior performance even in the harshest environments. TUO HANG MS3476W22-55P MIL-DTL-26482 Series Ⅱ is an excellent choice for any application where durability and reliability are key.

Customization:

MIL-DTL-26482 Series II: MS3476W22-55P

• Brand Name: TUO HANG

• Model Number: MS3476W22-55P

• Place of Origin: China

• Product Name: MIL-DTL-26482 Series II

• Number of Contacts: 55

• Current Rating: 7.5A

• Connector Type: Circular

• Gender: Straight Plug

Support and Services:

MIL-DTL-26482 Series II Technical Support and Services

MIL-DTL-26482 Series II is supported by a comprehensive range of technical support and services, including:

• A dedicated customer support team to assist with any questions or technical concerns

• Technical advice to ensure the application of the correct product for the specific application

• Design support for custom applications

• Ongoing product development and improvement

• Regular product updates and notifications

• Comprehensive library of technical documents and resources

Packing and Shipping:

MIL-DTL-26482 Series Ⅱ Packaging and Shipping:

The MIL-DTL-26482 Series Ⅱ connectors shall be packed and shipped in accordance with the Anti-Static and ESD requirements of MIL-STD-1686 and MIL-STD-2073.

The MIL-DTL-26482 Series Ⅱ connectors shall be packed and shipped in accordance with MIL-STD-130.

The MIL-DTL-26482 Series Ⅱ connectors shall be packaged in boxes, trays, or other appropriate containers that are designed for shipping.

The MIL-DTL-26482 Series Ⅱ connectors shall be labeled with the manufacturer’s name, the part number, and the date of manufacture.

FAQ:

Q1: What is MIL-DTL-26482 Series Ⅱ?

A1: MIL-DTL-26482 Series Ⅱ is a cylindrical connector manufactured by TUO HANG, with model number MS3476W22-55P. It is made of high-grade materials and originates from China.

Q2: What is the purpose of MIL-DTL-26482 Series Ⅱ?

A2: MIL-DTL-26482 Series Ⅱ is designed to provide a secure connection between two components or machines. It is commonly used in aerospace, automotive, and military applications.

Q3: What materials is MIL-DTL-26482 Series Ⅱ made of?

A3: MIL-DTL-26482 Series Ⅱ is made of high-grade materials, including aluminum alloy and nylon.

Q4: What types of applications is MIL-DTL-26482 Series Ⅱ typically used for?

A4: MIL-DTL-26482 Series Ⅱ is typically used in aerospace, automotive, and military applications. It is also suitable for harsh environments and high-vibration applications.

Q5: Does MIL-DTL-26482 Series Ⅱ come with any certifications?

A5: MIL-DTL-26482 Series Ⅱ is certified to the MIL-DTL-26482 standard by the United States Defense Logistics Agency (DLA).

MIL-C-26482-Series 2 Datasheet.pdf
