D38999/24WJ43PA MIL-DTL-38999 Series III Jam Nut Aviation Connectors | 7A 500V Electric Connector Receptacle

Part Number:D38999/24WJ43PA

Product Description:

MIL-DTL-38999 Series III

MIL-DTL-38999 Series III is a high performance, high density connector designed for military and aerospace applications. It features crimp contacts and aluminium shells, making it highly reliable and durable in extreme environments.

Product Overview

The MIL-DTL-38999 Series III connector is designed to meet the demanding requirements of military and aerospace applications. It is capable of handling high current and voltage ratings, making it suitable for a wide range of power and signal transmission needs.

Current Rating: 7A

The MIL-DTL-38999 Series III connector is capable of handling a maximum current rating of 7A, making it suitable for high power applications.

Contact Finish: Gold

The contacts of the MIL-DTL-38999 Series III connector are finished with gold plating, providing superior conductivity and corrosion resistance.

Shell Size: 25

The MIL-DTL-38999 Series III connector is available in shell size 25, making it compact and suitable for high density applications where space is limited.

Voltage Rating: 500V

The MIL-DTL-38999 Series III connector is designed to handle a maximum voltage rating of 500V, making it suitable for a wide range of power and signal transmission needs.

Operating Temperature: -55°C To +125°C

The MIL-DTL-38999 Series III connector is designed to operate in extreme temperatures, with a temperature range of -55°C to +125°C, making it suitable for use in harsh environments.

Key Features

• Military-Detail 38999 Series III

• Crimp Contact

• Aluminium Shell

• High Density

• High Performance

• Reliability

• Durability

The MIL-DTL-38999 Series III connector incorporates these key features to provide a high quality, high performance and reliable solution for military and aerospace applications.

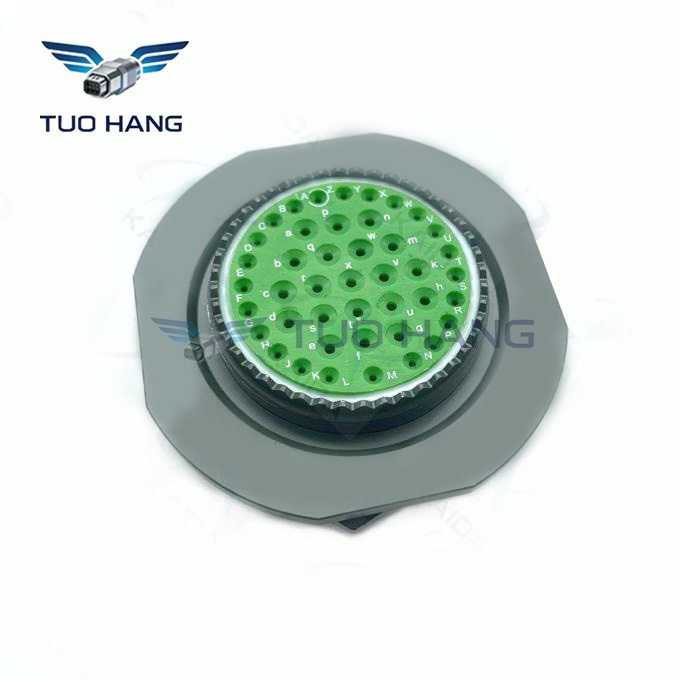

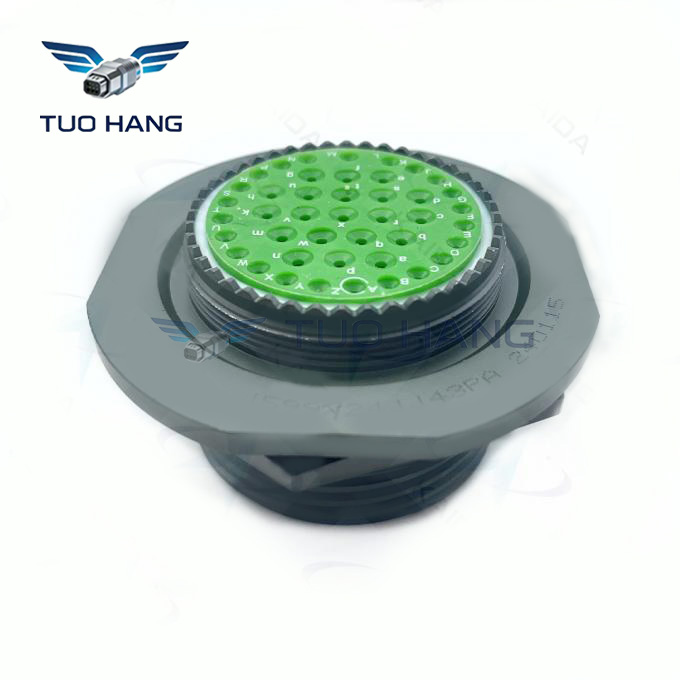

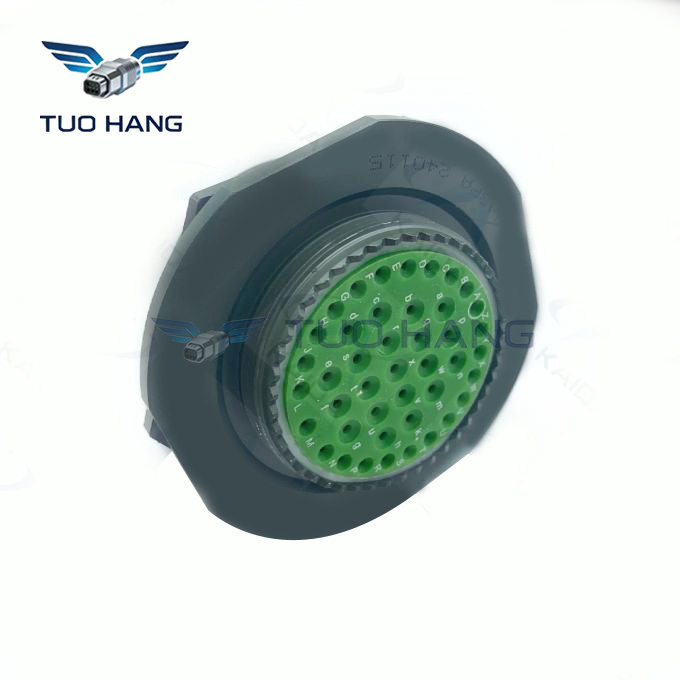

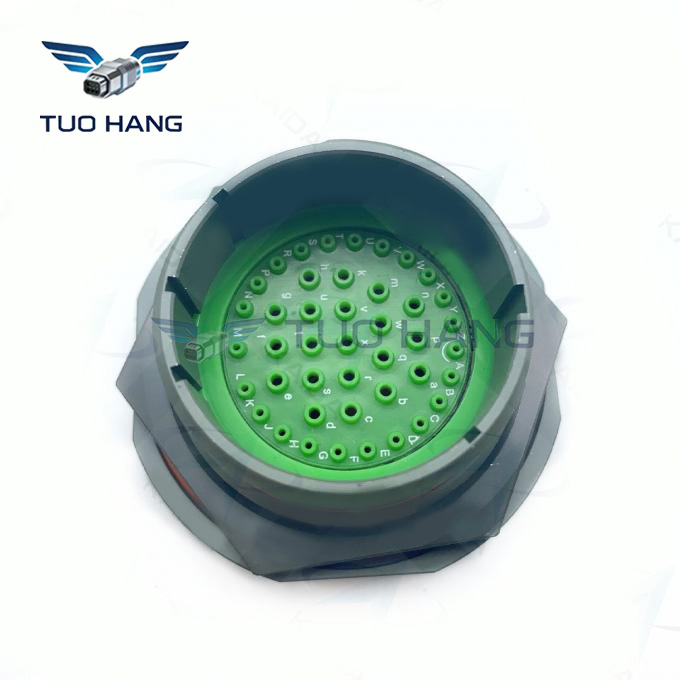

500V MilL-DTL-38999 Series Ill 7A Jam Nut Receptacle D38999/24WJ43PA 43 Male Pins.8D Series 0

Features:

• Product Name: MIL-DTL-38999 Series 3

• Contact Type: Crimp

• Contact Finish: Gold

• Current Rating: 7 A

• Operating Temperature: -55°C To +125°C

• Number of Contacts: 43

• Olive Green Cadmium

• Crimp Contact

• Military-Detail 38999 Series Ⅲ

Technical Parameters:

Applications:

MIL-DTL-38999 Series 3 - TUO HANG

The MIL-DTL-38999 Series 3 is a highly advanced and reliable connector that has been widely used in military and aerospace applications for decades. It is known for its superior performance, durability, and flexibility, making it the go-to choice for critical and demanding environments.

Brand Name: TUO HANG

Kaida is a renowned brand that specializes in manufacturing and supplying high-quality connectors for various industries. With a strong emphasis on research and development, Kaida has been able to produce innovative and cutting-edge solutions that meet the ever-evolving needs of its customers.

Model Number: D38999/24WJ43PA

The D38999/24WJ43PA is part of the MIL-DTL-38999 Series 3 and is a jam nut receptacle connector. It is designed to provide a secure and reliable connection for electrical and electronic systems in military and aerospace applications.

Place of Origin: China

The MIL-DTL-38999 Series 3 connectors from TUO HANG are proudly made in China. With state-of-the-art manufacturing facilities and a highly skilled workforce, TUO HANG is able to produce high-quality connectors that meet international standards and specifications.

Current Rating: 7 A

The D38999/24WJ43PA has a current rating of 7 A, making it suitable for a wide range of electrical and electronic systems. This high current rating ensures that the connector can handle heavy loads without compromising on performance or safety.

Shell Size: 25

The shell size of the D38999/24WJ43PA is 25, which is a standard size for the MIL-DTL-38999 Series 3 connectors. This size makes it compatible with other connectors in the series, allowing for easy integration into various systems and applications.

Operating Temperature: -55°C To +125°C

The D38999/24WJ43PA is built to withstand extreme temperatures ranging from -55°C to +125°C. This makes it suitable for use in harsh and demanding environments, such as military and aerospace operations, where temperature fluctuations are common.

Connector Type: Jam Nut Receptacle

The D38999/24WJ43PA is a jam nut receptacle connector, which means it can be easily mounted on a panel or bulkhead with a simple screw-on nut. This type of connector provides a secure and reliable connection, making it ideal for critical applications.

Shell Finish: Olive Green Cadmium

The shell finish of the D38999/24WJ43PA is olive green cadmium, which is a highly durable and corrosion-resistant material. This finish not only enhances the appearance of the connector but also provides protection against harsh environmental conditions.

Overall, the MIL-DTL-38999 Series 3 connectors from TUO HANG are a top choice for military and aerospace applications. With their high performance, reliability, and durability, they have proven to be an essential component in critical systems and operations.

Customization:

TUO HANG Customized MIL-DTL-38999 Series III Connector

Product Information:

Brand Name: TUO HANG

Model Number: D38999/24WJ43PA

Place of Origin: China

Shell Finish: Olive Green Cadmium

Shell Size: 25

Connector Type: Jam Nut Receptacle

Number of Contacts: 43

Contact Type: Crimp

MIL-DTL-38999 Series III Customization Service:

TUO HANG offers customized MIL-DTL-38999 Series III connectors to meet your specific needs. Our customization service includes:

• Custom shell finishes, such as Olive Green Cadmium

• Shell sizes ranging from 9 to 25

• Various connector types, including Jam Nut Receptacle

• Flexible number of contacts, with options up to 43

• Multiple contact types, such as Crimp

With TUO HANG's customization service, you can tailor your MIL-DTL-38999 Series III connectors to your exact requirements, ensuring a perfect fit for your applications.

Packing and Shipping:

Packaging and Shipping for MIL-DTL-38999 Series 3

The MIL-DTL-38999 Series 3 product is packaged and shipped according to the following guidelines:

• The product is packaged in a sturdy cardboard box to protect it during transportation.

• Each inpidual product is wrapped in bubble wrap to prevent damage from impact.

• The packaged product is then placed in a larger box with cushioning material for additional protection.

• The shipping address is clearly labeled on the outside of the box using waterproof and durable labeling material.

• The product is shipped using a reputable shipping company with tracking capabilities.

FAQ:

• Q: What is the brand name of MIL-DTL-38999 Series 3?

• A: The brand name is TUO HANG.

• Q: What is the model number of MIL-DTL-38999 Series 3?

• A: The model number is D38999/24WJ43PA.

• Q: Where is MIL-DTL-38999 Series 3 manufactured?

• A: It is manufactured in China.

• Q: What is the contact rating of MIL-DTL-38999 Series 3?

• A: The contact rating is 43 amps.

• Q: What is the shell material of MIL-DTL-38999 Series 3?

• A: The shell material is aluminum alloy.
