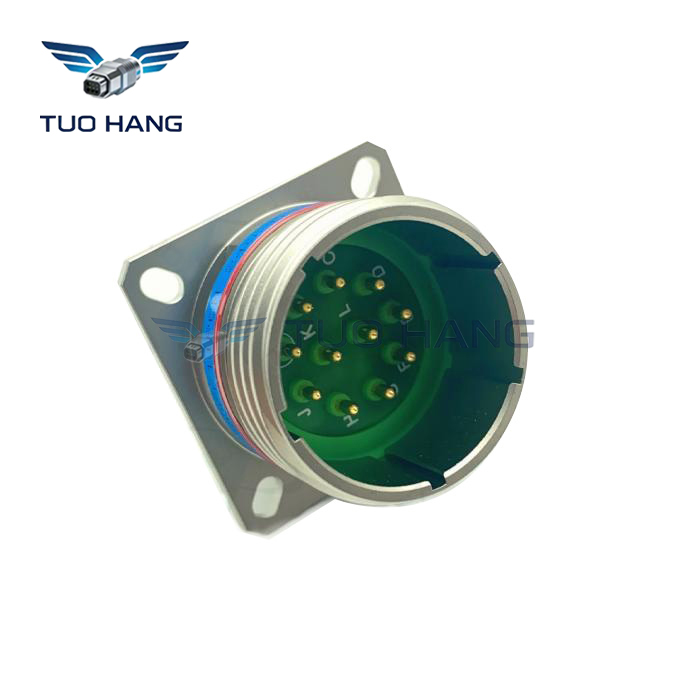

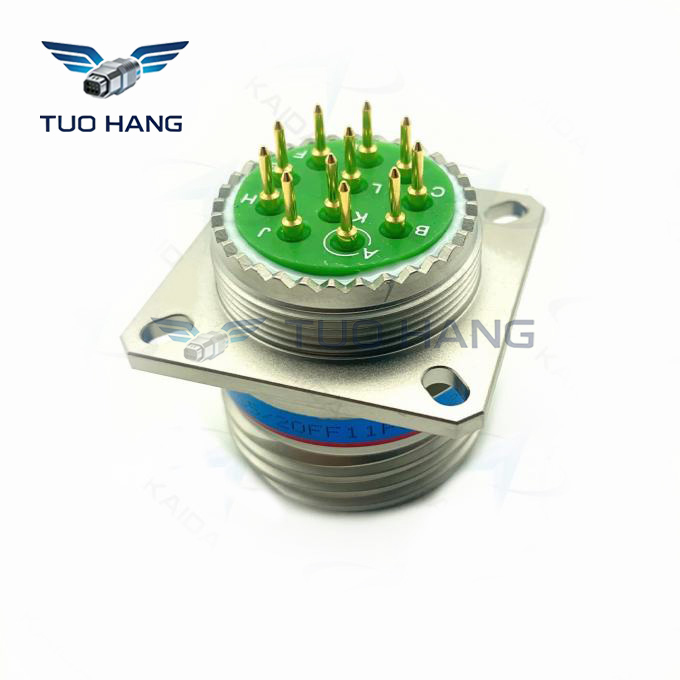

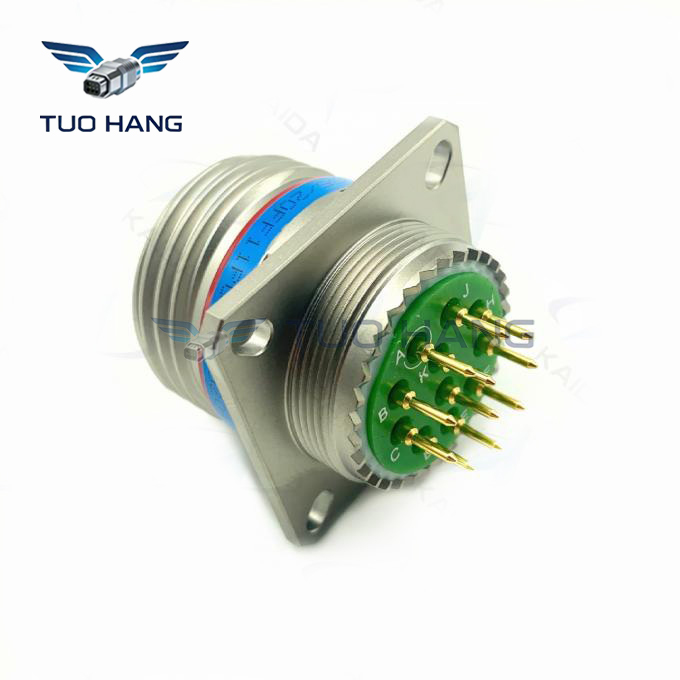

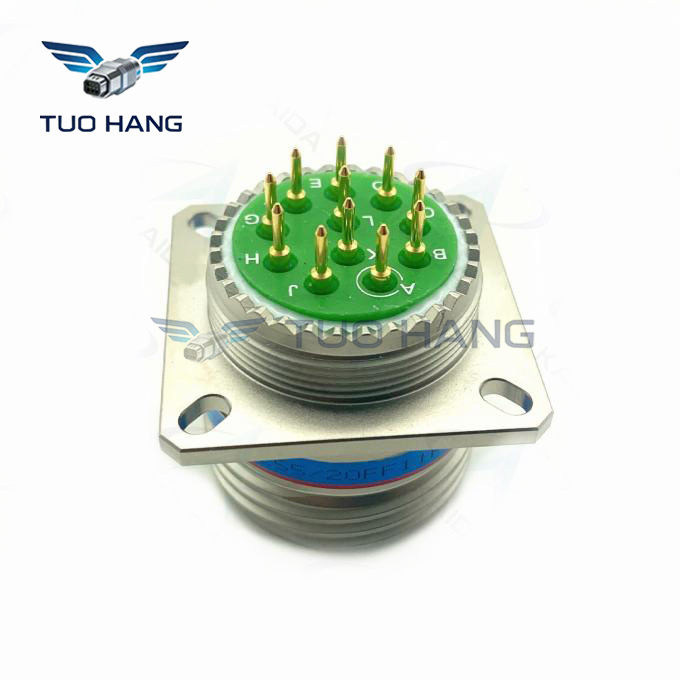

D38999/20FF11PCN MIL-DTL-38999 Series III Square Flange Aviation Connectors | Short PCB Tail Electric Connector

Part Number:D38999/20FF11PCN

Product Description:

MIL-DTL-38999 Series 3 Product Overview

The MIL-DTL-38999 Series 3 is a highly reliable, military-grade connector designed to meet the strict requirements of the aerospace and defense industries. This detailed-38999 Series Ⅲ connector is the latest addition to the Military-Detailed 38999 family, offering enhanced performance and durability for critical applications.

One of the key features of the MIL-DTL-38999 Series 3 is its shell finish. With an electroless nickel plating, this connector provides excellent corrosion resistance and can withstand extreme environmental conditions. This makes it ideal for use in harsh environments, such as in military aircraft, ground vehicles, and weapons systems.

The contact type of the MIL-DTL-38999 Series 3 is short PCB tail, which allows for easy installation on printed circuit boards. This type of contact also ensures a secure and stable connection, reducing the risk of signal loss or failure. Additionally, the contacts are made of high-quality copper alloy, providing superior conductivity and durability.

The connector type of the MIL-DTL-38999 Series 3 is receptacle, which means it is designed to accept a plug or male connector. This allows for easy integration with other components and systems, making it a versatile choice for a variety of applications. The receptacle also features a threaded coupling type, providing a secure and reliable connection that can withstand vibrations and shock.

In summary, the MIL-DTL-38999 Series 3 is a highly advanced and reliable connector that meets the strict requirements of the aerospace and defense industries. Its electroless nickel plating, short PCB tail contacts, receptacle type, and threaded coupling make it a top choice for critical applications. Choose the Military-Detail 38999 Series Ⅲ for your next project and experience the ultimate in performance and durability.

Features:

• Product Name: MIL-DTL-38999 Series 3

• Coupling Type: Threaded

• Number of Contacts: 11

• Shell Finish: Electroless Nickel

• Contact Finish: Gold

• Contact Material: Copper Alloy

Technical Parameters:

Applications:

MIL-DTL-38999 Series 3 - TUO HANG D38999/20FF11PCN

The MIL-DTL-38999 Series 3 is a highly advanced and rugged connector system designed for use in harsh environments, specifically in military and aerospace applications. The TUO HANG D38999/20FF11PCN is a specific model of this series, manufactured by a reputable Chinese company known for its high-quality products.

Product Attributes

• Brand Name: TUO HANG

• Model Number: D38999/20FF11PCN

• Place of Origin: China

• Voltage Rating: 500V

• Current Rating: 7 A

• Number of Contacts: 11

• Connector Type: Receptacle

• Contact Type: Short PCB Tail

Application Scenarios

The Military-Detailed 38999 Series 3 connectors, specifically the TUO HANG D38999/20FF11PCN model, are designed for use in military and aerospace applications where reliability and high performance are crucial. These connectors are commonly used in communication systems, avionics, weapons systems, and other critical equipment.

Advanced Sealing Technology

One of the key features of the MIL-DTL-38999 Series 3 is its advanced sealing technology. This ensures a waterproof and dustproof connection, making it suitable for use in extreme environments. The TUO HANG D38999/20FF11PCN model utilizes this technology, providing a high level of protection against moisture, dust, and other contaminants.

High-Speed Data Transfer

The Military-Detailed 38999 Series 3 connectors are also known for their ability to support high-speed data transfer. This is essential in military and aerospace applications where quick and efficient communication is crucial. The TUO HANG D38999/20FF11PCN model is designed to handle high-speed data transfer, making it a reliable choice for these types of applications.

Corrosion and Shock Resistance

In addition to its advanced sealing technology, the MIL-DTL-38999 Series 3 connectors are also known for their corrosion and shock resistance. The TUO HANG D38999/20FF11PCN model is constructed using precision machining and advanced materials, making it highly resistant to corrosion. It is also designed to withstand shock and vibration, ensuring a reliable connection in harsh environments.

Waterproof, Dustproof, and Extreme Temperatures

The Military-Detailed 38999 Series 3 connectors are built to withstand extreme temperatures, making them suitable for use in a wide range of environments. The TUO HANG D38999/20FF11PCN model can operate in temperatures ranging from -55°C to 200°C. It is also waterproof and dustproof, making it ideal for use in outdoor and rugged environments.

MIL-DTL-38999 Standards

The MIL-DTL-38999 is a military and aerospace standard for circular connectors. The series 3 connectors, including the TUO HANG D38999/20FF11PCN model, adhere to this standard, ensuring a high level of quality, reliability, and performance. This makes them a preferred choice for military and aerospace applications.

Chinese Manufacturer

The TUO HANG D38999/20FF11PCN is proudly manufactured by a reputable Chinese company that specializes in producing high-quality connectors for military and aerospace applications. With advanced technology and precision machining, the company ensures that their products meet the strict standards of the MIL-DTL-38999 Series 3.

Customization:

TUO HANG - MIL-DTL-38999 Series 3 Customized Service

Brand Name: TUO HANG

Model Number: D38999/20FF11PCN

Place of Origin: China

Current Rating: 7 A

Voltage Rating: 500V

Number of Contacts: 11

Contact Type: Short PCB Tail

Coupling Type: Threaded

Product Description:

The MIL-DTL-38999 Series 3, also known as Detail-38999 Series Ⅲ, is a high-performance circular connector designed and manufactured by TUO HANG in China. It can withstand harsh environments and is commonly used in military and aerospace applications. To meet the specific needs of our customers, TUO HANG offers customized services for the MIL-DTL-38999 Series 3 connector.

Customization Options:

• Shell Size: Customers can choose from various shell sizes to accommodate different cable diameters and numbers of contacts.

• Plating Options: The MIL-DTL-38999 Series 3 connectors can be plated with different materials such as nickel, silver, and gold to meet specific application requirements.

• Contact Arrangement: TUO HANG offers customizable contact arrangements to accommodate different circuit configurations.

• Contact Type: Customers can choose from a variety of contact types, including solder, crimp, and PCB tail.

• Coupling Type: The MIL-DTL-38999 Series 3 can be customized with different coupling types, such as threaded, bayonet, and push-pull.

• Custom Labeling: TUO HANG can provide custom labeling and marking services to meet specific branding or identification needs.

Why Choose TUO HANG for MIL-DTL-38999 Series 3 Customized Service?

• High-Quality Products: TUO HANG is an ISO 9001 certified company, and we strictly adhere to MIL-DTL-38999 Series 3 standards to ensure the highest quality of our products.

• Experienced Team: With over 20 years of experience in the connector industry, our team has the expertise to provide customized solutions for the MIL-DTL-38999 Series 3.

• Short Lead Time: We understand the importance of timely delivery, and we strive to provide quick turnaround times for our customized products.

• Competitive Pricing: Our customized services are offered at competitive prices without compromising on quality.

• Excellent Customer Service: TUO HANG is committed to providing exceptional customer service, and we work closely with our customers to meet their specific needs and requirements.

Packing and Shipping:

MIL-DTL-38999 Series 3 Packaging and Shipping

Packaging:

The MIL-DTL-38999 Series 3 products are packaged in accordance with the military packaging specifications MIL-STD-2073-1E . The products are inpidually wrapped in a protective material and placed in a sturdy, moisture-resistant container.

If the products are being shipped in bulk, they will be packaged in a durable, reusable container with sufficient padding to protect the products during transit.

Shipping:

The MIL-DTL-38999 Series 3 products are shipped via air, ground, or sea transportation, depending on the customer's preference and the destination of the products. All shipping methods comply with the applicable transportation regulations and requirements.

For international shipments, the products are accompanied by all necessary export documentation, including but not limited to commercial invoices, shipper's export declarations, and any required certifications or licenses.

To ensure the safe and timely delivery of the products, we work with reputable shipping carriers and provide tracking information for all shipments.

For urgent orders, expedited shipping options are available at an additional cost.

Our goal is to deliver the MIL-DTL-38999 Series 3 products to our customers in a timely and secure manner, while complying with all packaging and shipping regulations. If you have any specific packaging or shipping requirements, please contact us and we will do our best to accommodate your needs.

FAQ:

• Q: What is the brand name of this product?

• A: The brand name of this product is TUO HANG.

• Q: What is the model number of this product?

• A: The model number of this product is D38999/20FF11PCN.

• Q: Where is this product manufactured?

• A: This product is manufactured in China.

• Q: What is the series number of this product?

• A: The series number of this product is 3.

• Q: What are the features of this product?

• A: This product has a MIL-DTL-38999 specification, is part of Series 3, and is designed for use in harsh environments.
