MIL-DTL-38999 Series II 4 Socket Olive Drab Cadmium Connector | Amphenol Equivalent

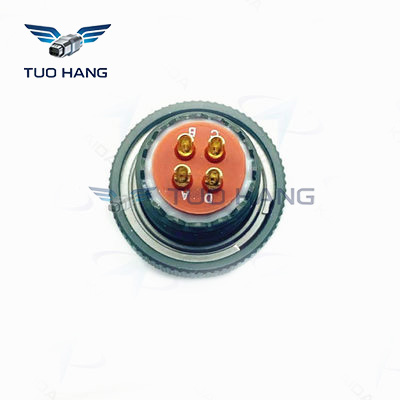

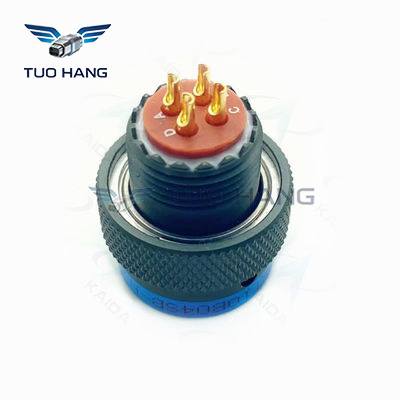

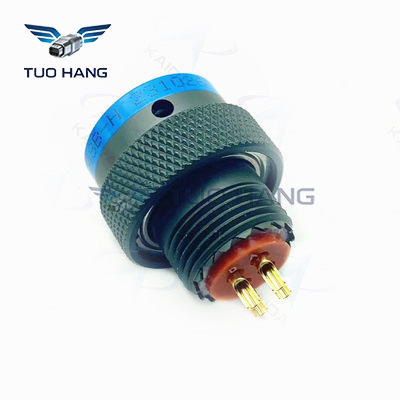

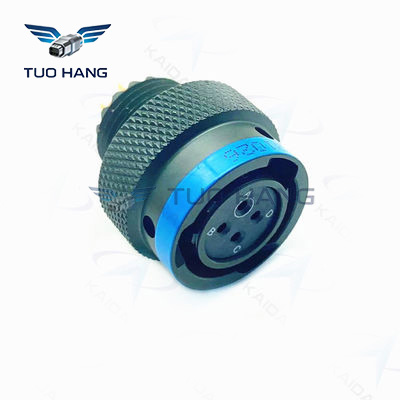

Straight Plug with 7.5A Current Rating MIL-DTL-38999 Series Ⅱ. 4 Female Pins.Olive Green Cadmium.

Product Description:

The MIL-DTL-38999 Series Ⅱ is a standard straight plug connector with 4 solder contacts. The Series Ⅱ connector is compliant with MS27473 and MIL-DTL-38999 standards and is characterized by its gold contact plating, olive green cadmium finish, and its solder contacts. It is designed for use in military and aerospace applications. The Series Ⅱ connector offers a reliable connection in high-temperature and high-vibration environments. It is constructed with superior materials to ensure a long-lasting connection. It features a ruggedized design that is resistant to shocks and impacts. The Series Ⅱ connector is suitable for a variety of applications, including power, signal, control, and data transmission.

Features:

• Product Name: MIL-DTL-38999 Series Ⅱ

• Part Number: MS27467T10B04SB-H

• Connector Type: Straight Plug

• Insulator Material: Thermoplastic

• Operating Temperature: -55 To 125 °C

• Contact Termination: Solder

• Contact Material: Copper Alloy

• Shell Size: 10

Technical Parameters:

Applications:

MIL-DTL-38999 Series Ⅱ, manufactured by TUO HANG, is a high performance connector with the model number MS27467T10B04SB-H. It is designed for commercial and military aerospace applications and is characterized by its shell size 10 and gold contact plating. With a voltage rating of 500V, MIL-DTL-38999 Series Ⅱ utilizes crimp contact termination and features superior performance and robust design. This product from TUO HANG is a reliable and high quality MIL-DTL-38999 Series Ⅱ connector for perse aerospace applications.

Customization:

MIL-DTL-38999 Series Ⅱ with TUO HANG MS27473T10B04SB-H Connectors

• Brand Name: TUO HANG

• Model Number: MS27473T10B04SB-H

• Place of Origin: China

• Shell Size: 10

• Gender: Straight Plug

• Contact Termination: Crimp

• Contact Plating: Gold

• Operating Temperature: -55 To 125°C

• Solder Contacts: MS27467T10B04SB-H

Support and Services:

MIL-DTL-38999 Series Ⅱ offers technical support and services to ensure that customers have the support they need when purchasing and using this product. Technical support includes but is not limited to:

• Product compatibility and application assistance

• Troubleshooting and installation support

• Product configurations and customizations

• Software and hardware maintenance and upgrades

• Technical advice and guidance

• Warranty and repair services

Packing and Shipping:

The packaging and shipping of MIL-DTL-38999 Series II is as follows:

• The connectors shall be packed in a moisture proof material and shipped in containers suitable for the type, weight, and quantity of the connectors.

• Connector assemblies shall be packaged in moisture proof material and shipped in containers suitable for the type, weight, and quantity of the assemblies.

• Containers shall be labeled with the contract number, part number, and quantity.

• Connector assemblies shall be shipped with a packing list.

• For connectors and connector assemblies, the handling and packaging materials shall be of the same quality as the connectors and assemblies.

FAQ:

Q1: What is MIL-DTL-38999 Series Ⅱ?

A1: MIL-DTL-38999 Series Ⅱ is a series of high-reliability, multi-pin electrical connectors manufactured by TUO HANG. They are designed to meet the requirements of MIL-DTL-38999 Series Ⅱ specification.

Q2: What is the model number of this product?

A2: The model number is MS27473T10B04SB-H.

Q3: What is the place of origin of this product?

A3: This product is manufactured in China.

Q4: What are the features of MIL-DTL-38999 Series Ⅱ?

A4: MIL-DTL-38999 Series Ⅱ features a high-reliability design, high-density contacts, and a wide range of configurations.

Q5: What are the applications of MIL-DTL-38999 Series Ⅱ?

A5: MIL-DTL-38999 Series Ⅱ is suitable for applications such as military and aerospace, instrumentation, and communication.

D38999 Series 2 Datasheet.pdf
