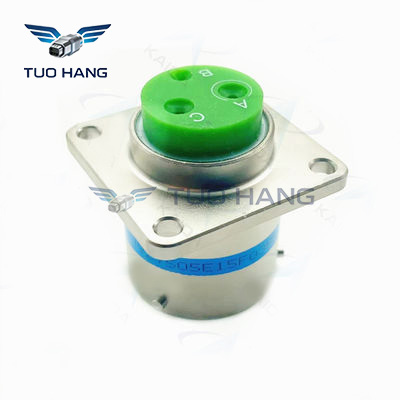

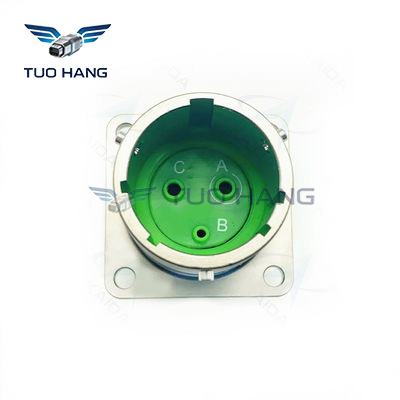

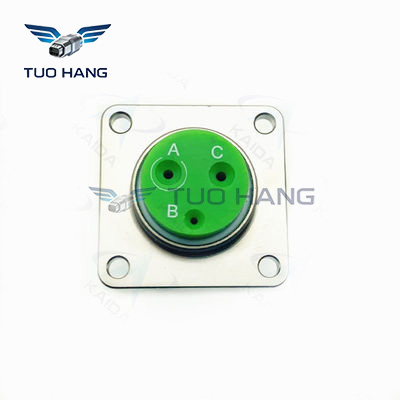

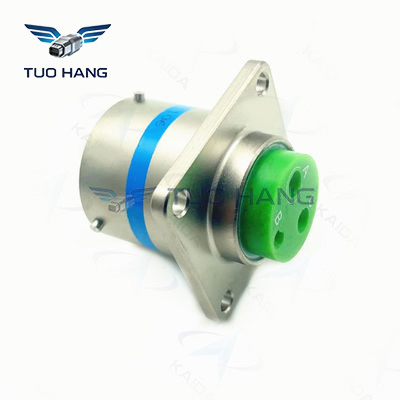

MS27505E15F03PN MIL-DTL-38999 Series I Aviation Connectors | Amphenol Equivalent 3-Pin Electric Connector

Box Mounting Type and Electroless Nickel Shell Finish for MIL-DTL-38999 Series. 3 Male Pins.MS27505E15F03PN.

Part Number:MS27505E15F03PN

Product Description:

MIL-DTL-38999 Series Ⅰ is a high-reliability, three-contact connector designed to meet the requirements of MIL-DTL-38999, the military standard for connectors. It offers a voltage rating of 500V, and it is a crimp-style connector with a shell size of 15. The connector's contacts are constructed with electroless nickel, making them highly resistant to corrosion and wear. The MIL-DTL-38999 Series Ⅰ connector is compliant with the requirements of MS27505 and is designed for use in mission-critical applications.

Features:

• Product Name: MIL-DTL-38999 Series Ⅰ

• Contact Material: Copper Alloy

• Current Rating: 7.5 A

• Insert Arrangement: 19-35

• Number of Contacts: 3

• Connector Type: Circular

• MS27505E15F03PN: Rear box mount receptacle

Technical Parameters:

Applications:

The MS27505E15F03PN is a MIL-DTL-38999 Series Ⅰ product designed and manufactured by TUO HANG, which is made in China. It has an insert arrangement of 19-35 and a shell size of 15. The product is plated with electroless nickel to provide a corrosion resistant finish. It is also designed with a mounting type of crimp, which makes it suitable for various industrial applications. The MS27505E15F03PN MIL-DTL-38999 Series Ⅰ is a reliable and robust product designed to withstand harsh environments and provide a long service life. It is widely used in aerospace, military, and other industries. The product can be used in high vibration, high temperature, and extreme environmental conditions, making it an ideal choice for many applications.

Customization:

MIL-DTL-38999 Series Ⅰ from TUO HANG is a light weight connector with MS27505E15F03PN made in China. It has 3 contacts with 19-35 insert arrangement and can handle 7.5A of current at 500V voltage rating.

Support and Services:

MIL-DTL-38999 Series Ⅰ offers technical support and services, including:

• Design and installation support

• Compatibility testing

• Product troubleshooting

• Maintenance and repair services

• Product customization

• Warranty and replacement services

Packing and Shipping:

The MIL-DTL-38999 Series Ⅰ product must be packaged and shipped in accordance with the following requirements:

• The product must be protected by a double-walled corrugated box.

• The box must be sealed with tape.

• The box must be labeled with the part number, quantity, and customer name.

• The box must be clearly labeled with the words “Fragile” and “Handle with Care”.

• The box must be shipped with a carrier who offers tracking services.

FAQ:

• Q: What is MIL-DTL-38999 Series I?

• A: MIL-DTL-38999 Series I is a military-grade circular connector series from TUO HANG, a trusted brand made in China. It is designed to meet the stringent requirements of the military industry.

• Q: What is the model number of TUO HANG MIL-DTL-38999 Series I?

• A: The model number of TUO HANG MIL-DTL-38999 Series I is MS27505E15F03PN.

• Q: What applications can TUO HANG MIL-DTL-38999 Series I connectors be used for?

• A: TUO HANG MIL-DTL-38999 Series I connectors are designed to be used in a variety of harsh environments, such as military, aerospace, and industrial applications.

• Q: What are the features of TUO HANG MIL-DTL-38999 Series I?

• A: TUO HANG MIL-DTL-38999 Series I connectors feature a high level of performance, including high vibration resistance, high shock resistance, high reliability, and high environmental resistance.

• Q: What materials are used for TUO HANG MIL-DTL-38999 Series I connectors?

• A: TUO HANG MIL-DTL-38999 Series I connectors use high-quality materials such as aluminum and steel to ensure durability and long-term performance.

•

• D38999 1 Series Datasheet.pdf
